I. Manufacturing Process

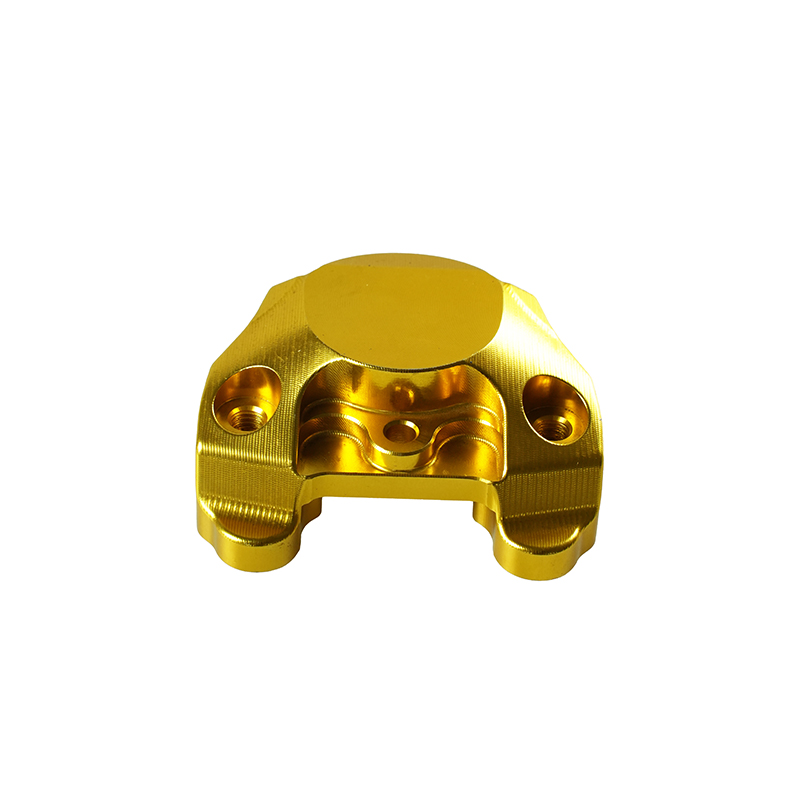

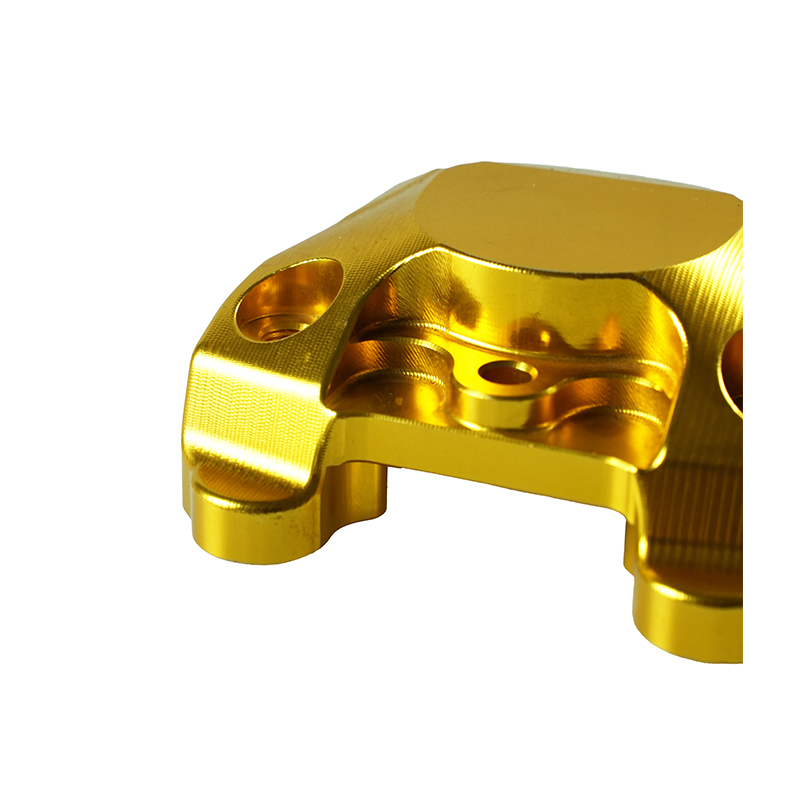

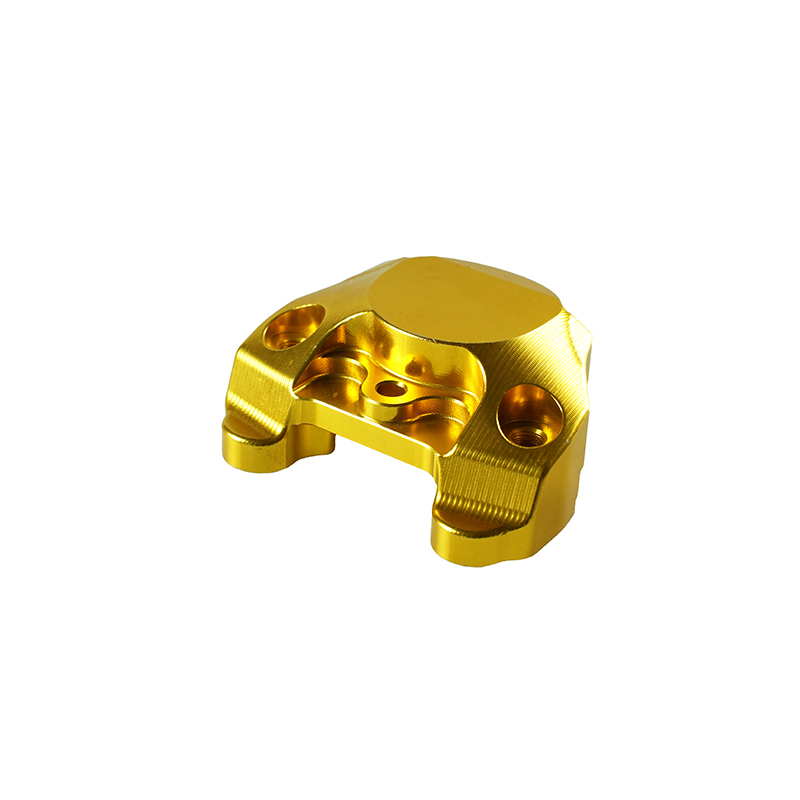

This automotive modification part is an irregularly shaped structural component with a gold anodized surface. Balancing structural strength and assembly compatibility is crucial. The core process utilizes a combination of forged blanks, 5-axis CNC precision machining, and surface treatment. The specific steps are as follows:
1. Raw Material Selection: 7075-T6 aerospace-grade aluminum alloy (ultra-high strength, excellent fatigue resistance, suitable for heavy-duty automotive modifications) or 6061-T6 aluminum alloy (high cost-effectiveness, suitable for light-duty modification parts) is selected. Forged aluminum blanks are used (to reduce internal defects and improve structural density).
2. Blank Pre-treatment: The forged aluminum blank undergoes solution treatment and aging to eliminate internal stress. It is then cut to length using a CNC sawing machine and sandblasted to improve clamping stability.
3. Five-Axis CNC Machining:
◦ Utilizing a five-axis CNC machining center, complex surface milling, hole drilling and tapping, thread machining, and cavity engraving are completed in a single setup, ensuring consistent machining of irregular structures.
◦ Precision boring and polishing are performed on mating surfaces. A combined tapping and reaming process is used for threaded holes to improve thread accuracy.
◦ For mass production, vacuum chucks and custom tooling are used to prevent clamping deformation.
4. Surface Treatment:
◦ Gold Hard Anodizing: The oxide layer thickness is controlled at 15~25μm, with a hardness ≥HV400, improving wear resistance and corrosion resistance (resisting impacts from gravel and oil stains during vehicle operation). The gold appearance complements the personalized needs of aftermarket parts.
◦ Passivation Treatment: Passivation and rust prevention are applied to non-surface surfaces to prevent oxidation of machined surfaces from affecting assembly.
◦ Laser Marking: Brand logos and specifications can be engraved on the surface to enhance product recognition.
5. Inspection and Trial Assembly: Dimensional accuracy is checked using a coordinate measuring machine (CMM). Assembly and trial fitting with original automotive parts are performed to verify fit and installation stability.
II. Machining Accuracy
This modified part must match the assembly tolerances of the original automotive parts. The core accuracy indicators are as follows:
1. Dimensional Accuracy:
◦ Mounting hole inner diameter tolerance: H7 grade (+0.018/0mm), threaded hole accuracy is 6H grade, ensuring precise fit with bolts.
◦ Cavity size tolerance: ±0.03mm, adapting to the installation clearance of internal components.
◦ Outer contour size tolerance: ±0.05mm, ensuring compatibility with the automotive body/chassis.
◦ Hole position accuracy: ≤0.05mm, ensuring coaxiality of multi-bolt connections.
2. Geometric Tolerances:
◦ Mounting surface flatness: ≤0.03mm/100mm, reducing assembly clearance.
◦ Contour accuracy of complex curved surfaces: ≤0.05mm, ensuring a good fit with the original vehicle's curved surfaces.
◦ Perpendicularity/Parallelism: ≤0.03mm for critical mating surfaces, preventing misalignment under stress after assembly.
3. Surface Precision:
◦ Mating surface roughness Ra0.8~1.6μm, reducing assembly friction resistance.
◦ Exterior surface (after anodizing) roughness Ra1.6~3.2μm, ensuring uniform texture of the gold oxide layer.
◦ Non-mating surface roughness Ra6.3μm, meeting basic usage requirements.
III. Industry Applications
These aluminum alloy automotive modification parts, with their lightweight, high strength, and customizable characteristics, are widely used in the automotive modification field. Core applications include:
1. Chassis Modification:
◦ Suspension system control arm brackets and steering knuckle modifications: lightweight design reduces unsprung mass and improves handling.
◦ Brake caliper brackets and wheel flanges: high-strength aluminum alloy material meets the load requirements of high-performance braking systems.
2. Powertrain Modification:
◦ Engine intake manifold brackets and turbocharger mount modifications: high-temperature resistance and fatigue resistance adapt to the operating conditions after power upgrades.
◦ Transmission shift mechanism brackets: precise machining ensures smooth shifting.
3. Exterior and Interior Modification:
◦ Steering wheel quick-release bases and seat rail modifications: gold anodized finish enhances interior personalization.
◦ Body kit mounting brackets and rear spoiler mounts: balancing structural strength and visual appeal.
4. Off-road Modifications:
◦ Anti-roll bar brackets and shock absorber mounts for off-road vehicles; the high strength of 7075 aluminum alloy can withstand the complex stresses of off-road conditions.
◦ Chassis skid plate connecting brackets; lightweight design reduces vehicle weight.
