I. Processing Technology

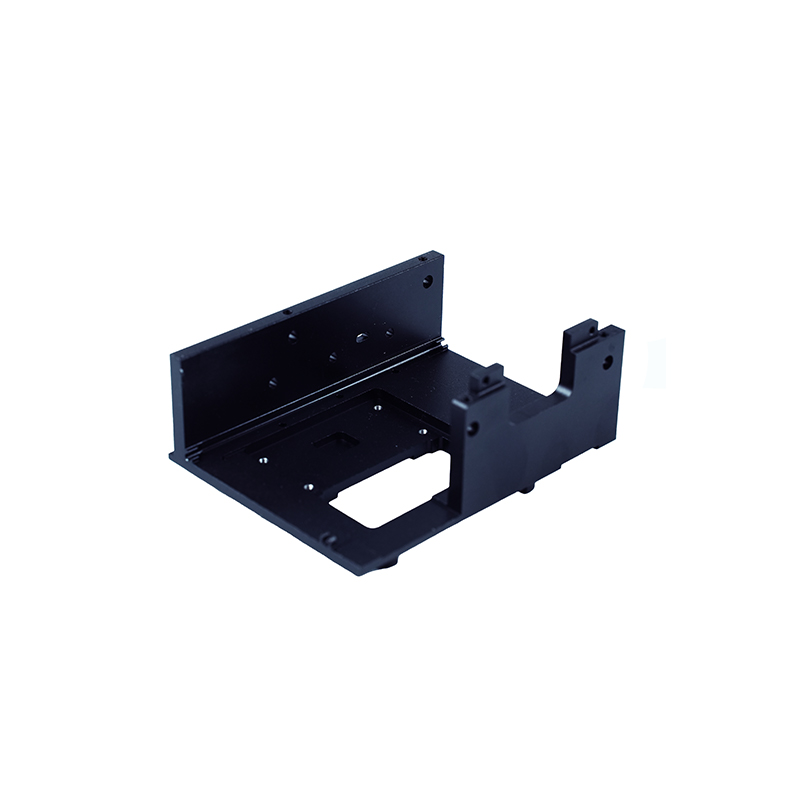

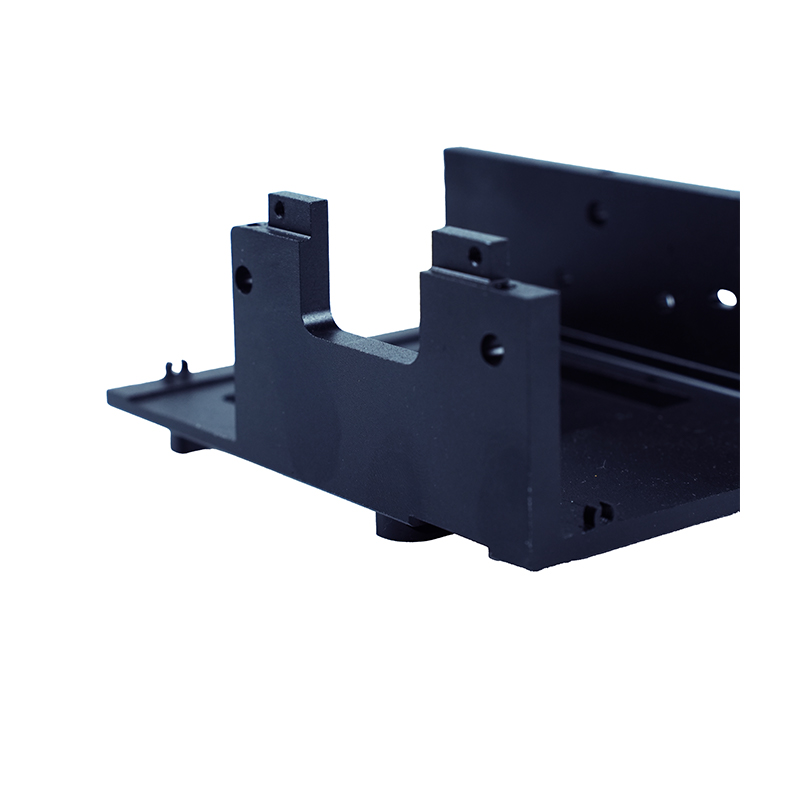

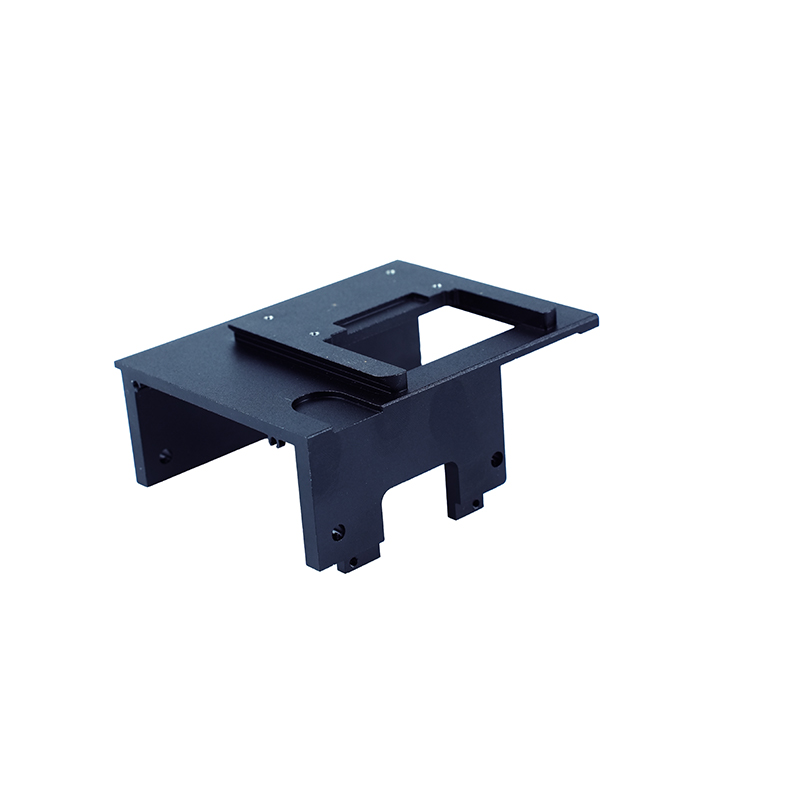

This aluminum profile sliding module features an L-shaped frame structure, including precision slide rail grooves, positioning holes, and assembly clips. Balancing structural rigidity and sliding adaptability is crucial. The core process utilizes aluminum profile extrusion + CNC precision machining + surface treatment. The specific steps are as follows:
1. Raw Material Selection: 6063 aluminum alloy (good extrusion formability, excellent surface treatment effect) or 6061 aluminum alloy (higher structural strength, suitable for heavy-duty sliding scenarios) is selected, using custom-shaped aluminum profile blanks.
2. Profile Extrusion Forming:
◦ A custom-designed extrusion die is used to extrude aluminum rods heated to 480~520℃ into an L-shaped basic profile, integrally forming the slide rail groove, reinforcing ribs, and other structures, reducing subsequent machining allowances.
◦ After extrusion, T5/T6 aging treatment (online quenching + artificial aging) is performed to eliminate internal stress, prevent profile deformation, and improve structural strength.
3. Precision Machining:
◦ Sawing to Length: CNC sawing is used to cut profiles to the appropriate module length, with tolerances controlled within ±0.2mm.
◦ CNC Machining: A three-axis/four-axis CNC machining center is used to complete drilling and tapping of positioning holes, milling of assembly clips, precision finishing of slide rail grooves, and cutting of hollow windows; precision milling and polishing of sliding mating surfaces reduces sliding friction resistance.
◦ Deburring/Chamfering: Edges, holes, and grooves are blunted to prevent sharp edges from affecting smooth sliding or scratching parts.
4. Surface Treatment:
◦ Hard Anodizing: A 10~20μm thick black hard anodizing layer is applied to improve surface hardness (≥HV400) and wear resistance, suitable for sliding friction scenarios; it also enhances corrosion resistance, resisting oil and dust corrosion in industrial environments.
◦ Sandblasting: Sandblasting is applied to non-sliding surfaces to increase surface adhesion and improve appearance.
◦ Lubricating Coating: A solid lubricating coating (such as PTFE coating) is sprayed into the slide rail groove to reduce the sliding friction coefficient and improve the smoothness of module movement.
5. Inspection and Trial Fitting: Inspect the dimensional accuracy and straightness of the slide rail groove, and perform assembly and trial sliding with the sliding components to verify the sliding resistance and positioning accuracy, ensuring that the module moves without jamming.
II. Machining Accuracy
This sliding module needs to meet the requirements of precise positioning and smooth sliding. The core accuracy indicators are as follows:
1. Dimensional Accuracy:
◦ Slide rail groove width/depth tolerance: ±0.02~±0.03mm, ensuring a clearance fit with the sliding components (clearance controlled within 0.05~0.1mm).
◦ Positioning hole position accuracy: ≤0.05mm, hole diameter tolerance H7 grade (+0.018/0mm), ensuring accurate assembly positioning.
◦ Assembly buckle dimensional tolerance: ±0.03mm, ensuring the tightness of the buckle connection and ease of disassembly.
◦ Overall Module Dimensions Tolerance: ±0.1mm, adaptable to equipment installation space.
2. Geometric Tolerances:
◦ Slide Rail Straightness: ≤0.05mm/100mm, ensuring precise sliding trajectory.
◦ Mounting Surface Flatness: ≤0.05mm/100mm, ensuring tight fit between the module and the equipment base.
◦ Perpendicularity: The perpendicularity of the L-shaped sidewall to the bottom surface ≤0.05mm, ensuring the perpendicularity accuracy of the sliding direction to the mounting surface.
◦ Parallelism: The parallelism of the two sides of the slide rail ≤0.03mm, preventing the sliding component from jamming.
3. Surface Finish:
◦ Slide rail sliding surface roughness Ra0.8~1.6μm, reducing sliding friction resistance.
◦ Mounting surface roughness Ra1.6~3.2μm, ensuring stable fit.
◦ The surface roughness (after anodizing) is Ra 3.2μm, ensuring uniform surface texture.
III. Industry Applications
These aluminum profile sliding modules, due to their lightweight, high rigidity, and precise sliding characteristics, are widely used in automation equipment, precision instruments, and other fields. Core applications include:
1. Industrial Automation Equipment:
◦ Material sliding supports in conveyor systems and tooling slide modules in automated testing equipment, adapting to the precise positioning requirements of material handling and product inspection.
◦ Sliding supports for end effectors in industrial robots and tool changing slide modules in CNC equipment, ensuring smooth and precise automated movements.
2. Precision Instruments:
◦ Stage sliding modules for optical inspection instruments (such as microscopes and image measuring instruments), adapting to the micro-displacement requirements of precision testing.
◦ Sample rack sliding supports for laboratory analytical instruments, ensuring positioning accuracy for sample loading and unloading.
3. 3C Electronics Manufacturing Equipment:
◦ Screen bonding slide modules and battery assembly sliding supports for mobile phone/tablet assembly lines, meeting the precision assembly requirements of 3C products.
◦ Chip conveying slide modules for semiconductor packaging equipment, meeting the high-precision processing requirements of semiconductor devices.
4. Logistics and Warehousing Equipment:
◦ Cargo storage sliding modules for small warehouse racks and package guiding slide supports for express sorting equipment, meeting the lightweight and high-frequency movement requirements of logistics scenarios.
5. Medical Device Field:
◦ Sample rack sliding modules for medical testing equipment (such as blood analyzers and biochemical analyzers), ensuring the accuracy and stability of medical testing.
◦ Adjustable slide supports for rehabilitation equipment, meeting the position adjustment needs of patients during rehabilitation training.
